Jump Shots
The jump_shots section in the markings response contains shooting mechanics data for every jump shot, including checkpoints (key frames), body positions, timing, and balance metrics.
Sample Response
json
{
"markings": {
"jump_shots": [
{

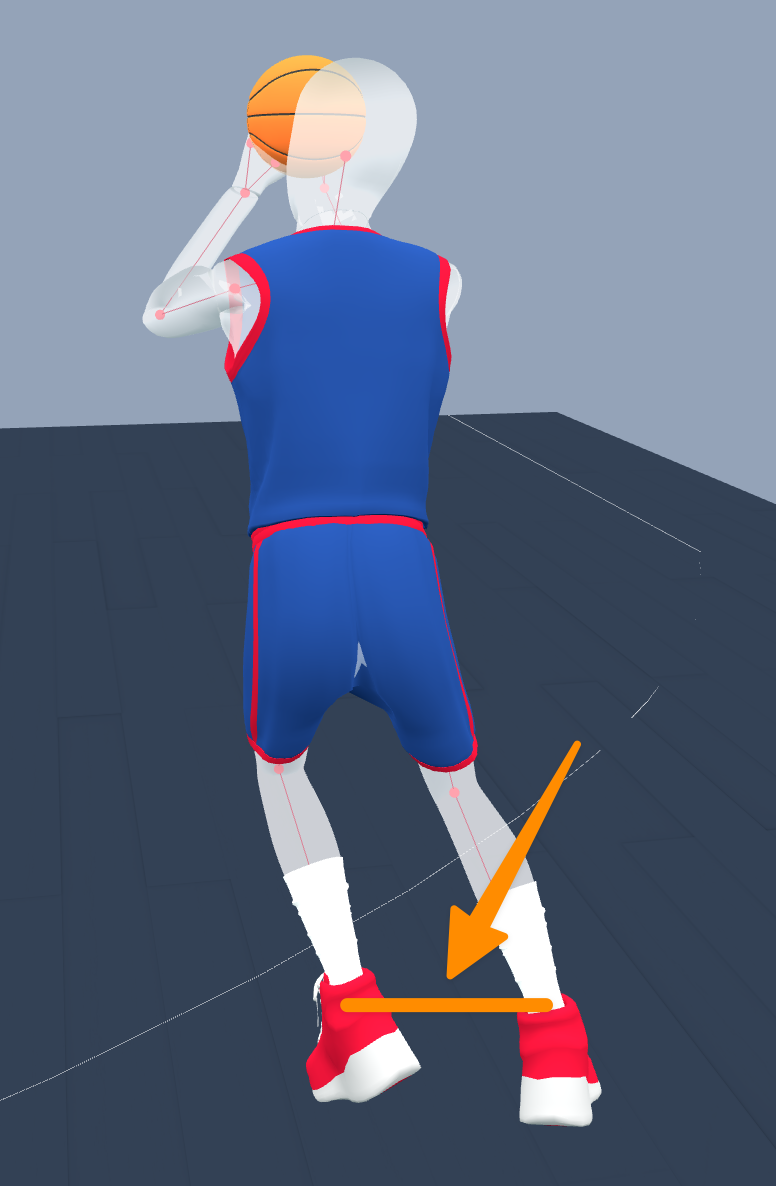

"ankle_distance_2d_at_jump_start_inches": 19.35,
"ball_height_relative_to_neck_at_min_hips_in": 15.57,
"ball_in_hands_sec": 0.92,
"ball_in_hands_to_min_hips_sec": 0.63,
"ball_release_height_in": 111.37,
"ball_rim_distance_at_release_in": 288.57,
"ball_velocity_after_release_inches_per_sec": 329.0,
"ball_velocity_min_ball_to_set_inches_per_sec": 103.5,
"ball_velocity_set_to_release_inches_per_sec": 181.48,
"basket_entry_angle": 46.21,
"basket_entry_depth": 5.38,
"basket_entry_distance_to_center_of_rim_2d": 6.26,
"basket_entry_he_frame": 272361,
"basket_entry_left_right": 3.21,
"basket_entry_location_relative_to_hoop_center_x": 4.19,
"basket_entry_location_relative_to_hoop_center_y": 4.66,
"basket_entry_speed_inches_per_sec": 302.5,
"basket_entry_wall_clock": "2025-12-23T02:41:51.781+00:00",
"elbow_relative_to_ball_at_release_forward_back_inches": 0.81,
"elbow_relative_to_ball_at_release_side_to_side_inches": 3.74,
"elbow_relative_to_ball_at_set_forward_back_inches": 14.73,
"elbow_relative_to_ball_at_set_side_to_side_inches": 4.0,
"event_pbp_id": 506,
"first_ball_in_hands_he_frame": 272227,
"first_ball_in_hands_wall_clock": "2025-12-23T02:41:49.548+00:00",
"first_left_wrist_below_eye_after_release_he_frame": 272308,
"first_left_wrist_below_eye_after_release_wall_clock": "2025-12-23T02:41:50.898+00:00",
"first_right_wrist_below_eye_after_release_he_frame": 272306,
"first_right_wrist_below_eye_after_release_wall_clock": "2025-12-23T02:41:50.864+00:00",
"game_id_nba": "0022500404",
"hand_closest_to_ball_on_release": "right",

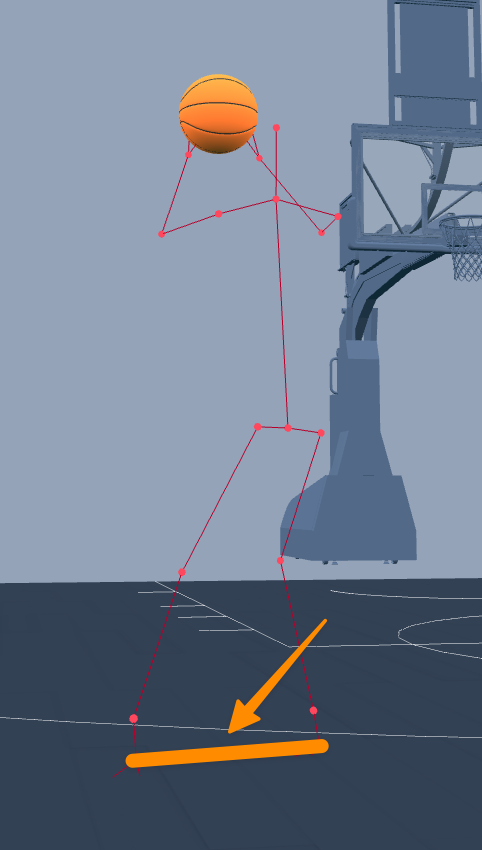

"heel_distance_at_jump_start_inches": 19.43,
"hip_facing_angle_relative_to_rim_at_first_ball_in_hands": 42.13,
"hip_facing_angle_relative_to_rim_at_jump_landing": 42.11,
"hip_facing_angle_relative_to_rim_at_jump_start": 39.26,
"hip_facing_angle_relative_to_rim_at_min_hips": 33.66,
"hip_facing_angle_relative_to_rim_at_release": 42.13,
"hip_turn_from_first_ball_in_hands_to_jump_landing": -0.02,
"hip_turn_from_jump_start_to_jump_landing": 2.85,
"hip_turn_from_min_hips_to_jump_landing": 8.45,
"hip_turn_from_min_hips_to_release": 8.47,
"is_off_balance": false,
"jump_distance_not_toward_rim_in": 1.13,
"jump_end_he_frame": 272302,
"jump_end_wall_clock": "2025-12-23T02:41:50.798+00:00",
"jump_shot_footwork_type": "left_right",
"landing_ankle_height_difference_in": 0.81,
"last_ball_in_hands_he_frame": 272282,
"last_ball_in_hands_wall_clock": "2025-12-23T02:41:50.464+00:00",
"last_either_foot_on_floor_he_frame": 272277,
"last_either_foot_on_floor_wall_clock": "2025-12-23T02:41:50.381+00:00",
"last_left_foot_on_floor_he_frame": 272277,
"last_left_foot_on_floor_wall_clock": "2025-12-23T02:41:50.381+00:00",
"last_right_foot_on_floor_he_frame": 272276,
"last_right_foot_on_floor_wall_clock": "2025-12-23T02:41:50.364+00:00",
"left_ankle_distance_forward_back_at_jump_start_inches": -4.49,

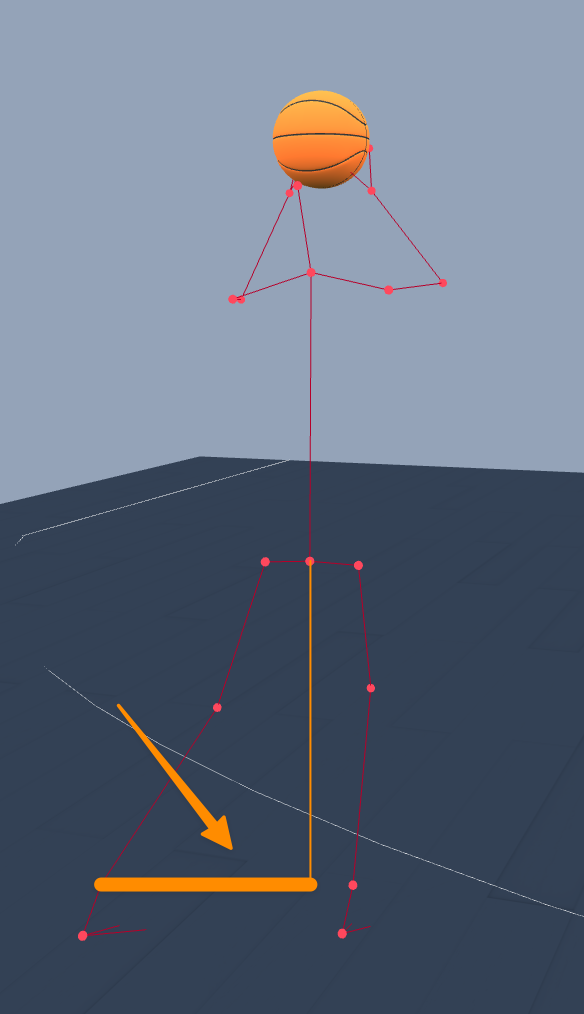

"left_ankle_distance_side_to_side_at_jump_start_inches": 6.03,

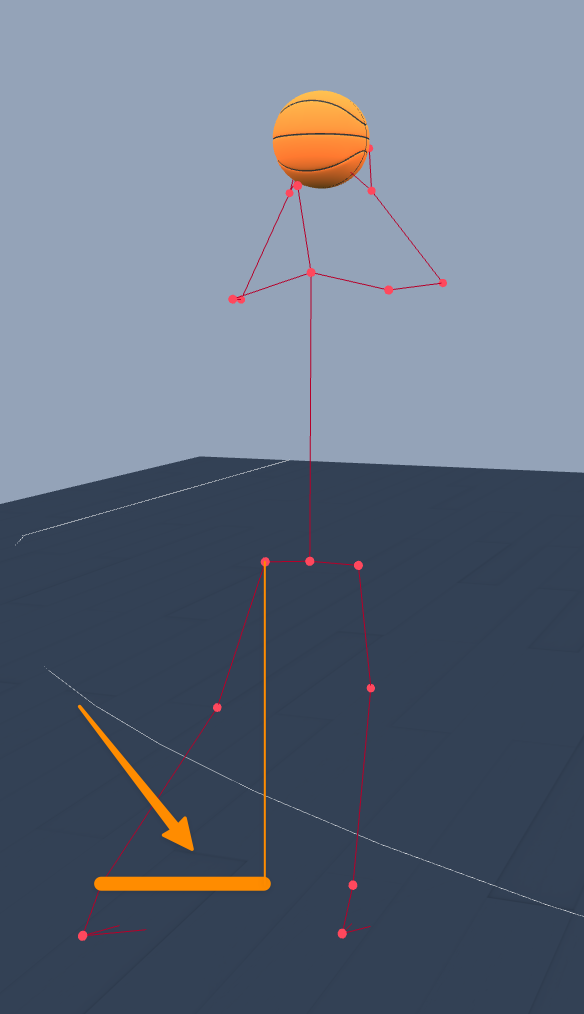

"left_ankle_vs_hip_side_to_side_at_jump_start_inches": 1.89,
"left_foot_angle_to_hoop_at_jump_start": -44.43,

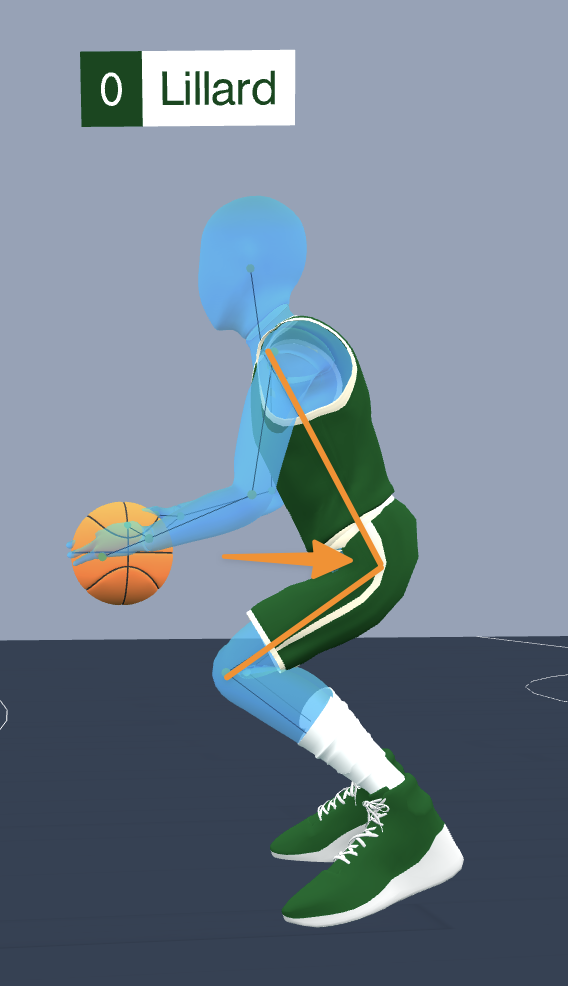

"left_hip_bend_angle_at_min_ball": 141.53,
"left_hip_bend_angle_at_min_hips": 140.04,

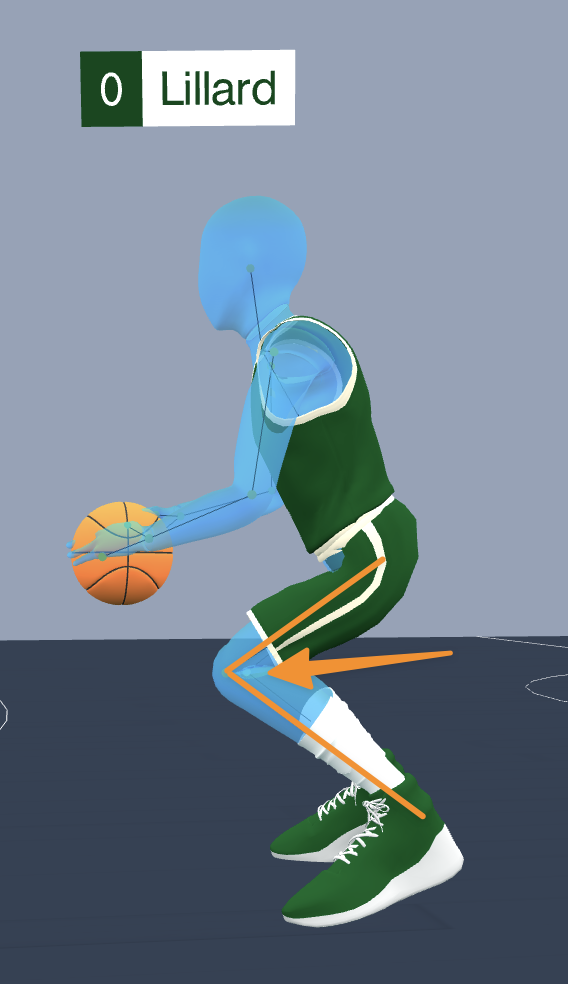

"left_knee_bend_angle_at_min_ball": 144.18,
"left_knee_bend_angle_at_min_hips": 110.08,
"mid_toe_distance_at_jump_start_inches": 21.63,
"mid_toe_heel_dist_difference_at_jump_start_inches": 2.2,
"min_ball_height_ball_position_forward_to_back_in": 13.75,
"min_ball_height_ball_position_side_to_side_in": 8.23,
"min_ball_height_he_frame": 272247,
"min_ball_height_relative_to_hips_in": -0.13,
"min_ball_height_wall_clock": "2025-12-23T02:41:49.881+00:00",
"min_hips_height_he_frame": 272265,
"min_hips_height_wall_clock": "2025-12-23T02:41:50.181+00:00",
"neck_relative_to_feet_midpoint_at_release_xy_distance_in": 4.26,
"neck_relative_to_knee_midpoint_at_release_xy_distance_in": 2.7,
"neck_relative_to_mid_hip_at_release_xy_distance_in": 0.44,
"non_shooting_wrist_above_eye_after_release_sec": 0.43,
"pbp_event_id": 506,
"release_angle": 44.51,
"release_height_above_min_ball_height_in": 69.31,
"release_height_above_nose_in": 24.86,
"release_point_ball_position_forward_to_back_in": 10.29,
"release_point_ball_position_side_to_side_in": -1.07,
"release_relative_to_jump_peak_timing": 0.1,
"release_relative_to_jump_sec": 0.08,
"right_ankle_distance_forward_back_at_jump_start_inches": -8.14,
"right_ankle_distance_side_to_side_at_jump_start_inches": 12.98,
"right_ankle_vs_hip_side_to_side_at_jump_start_inches": 8.85,
"right_foot_angle_to_hoop_at_jump_start": -27.88,
"right_hip_bend_angle_at_min_ball": 138.22,
"right_hip_bend_angle_at_min_hips": 150.1,
"right_knee_bend_angle_at_min_ball": 132.3,
"right_knee_bend_angle_at_min_hips": 121.62,
"set_height_above_min_ball_height_in": 40.36,
"set_point_ball_position_forward_to_back_in": -4.77,
"set_point_ball_position_side_to_side_in": -1.22,
"set_point_he_frame": 272271,
"set_point_height_above_nose_in": 9.97,
"set_point_height_in": 82.43,
"set_point_wall_clock": "2025-12-23T02:41:50.281+00:00",
"set_relative_to_jump_sec": -0.1,
"set_to_release_sec": 0.18,
"shooter_id_nba": 1631255,
"shooting_elbow_flare_angle_at_set_point": 20.23,
"shooting_elbow_shoulder_hip_angle_at_set_point": 132.65,
"shooting_elbow_shoulder_hoop_angle_at_set_point": 11.05,
"shooting_wrist_above_eye_after_release_sec": 0.4,
"shooting_wrist_elbow_shoulder_angle_at_set_point": 78.87,
"shot_id_ctg": "shot_009f4b290df7ad4f18532b2d660ca60e",
"shot_jump_direction_ankles": -36.93,
"shot_jump_direction_mid_hips": -39.3,
"shot_jump_distance_ankles_in": 13.64,
"shot_jump_distance_mid_hips_in": 4.9,
"shot_jump_max_hip_height_vs_standing_hip_height_diff_in": 12.47,
"shoulder_facing_angle_relative_to_rim_at_first_ball_in_hands": 58.8,
"shoulder_facing_angle_relative_to_rim_at_jump_landing": 31.97,
"shoulder_facing_angle_relative_to_rim_at_jump_start": 35.29,
"shoulder_facing_angle_relative_to_rim_at_min_hips": 31.49,
"shoulder_facing_angle_relative_to_rim_at_release": 34.68,
"shoulder_turn_from_first_ball_in_hands_to_jump_landing": -26.83,
"shoulder_turn_from_jump_start_to_jump_landing": -3.32,
"shoulder_turn_from_min_hips_to_jump_landing": 0.48,
"shoulder_turn_from_min_hips_to_release": 3.19,
"vertical_shoulder_tilt_at_min_hips": -5.35,
"wrist_relative_to_ball_at_release_forward_back_inches": -0.08,
"wrist_relative_to_ball_at_release_side_to_side_inches": -0.96,
"wrist_relative_to_ball_at_set_forward_back_inches": 6.26,
"wrist_relative_to_ball_at_set_side_to_side_inches": -1.6
}
]
}
}Fields
Identifiers
game_id_nba
Type: string
NBA game ID
shot_id_ctg
Type: string
CTG-generated unique shot ID (can join with shots)
shooter_id_nba
Type: integer
NBA player ID of the shooter
pbp_event_id
Type: integer
Play-by-play event ID (i.e. NGSS ID) for this shot
event_pbp_id deprecated
Type: integer
Play-by-play event ID (i.e. NGSS ID) for this shot
Deprecated
Use pbp_event_id instead. This field will be removed in a future version.
Checkpoints
Checkpoints are key frames in the shooting motion. Fields ending in _he_frame are Hawk-Eye frame numbers (60 FPS), and corresponding _wall_clock fields are UTC timestamps.
Gather & Setup
first_ball_in_hands_he_frame
Type: integer
First frame where shooter has both hands on the ball continuously until release
NOTE
This frame may be well before the actual shooting motion if the player has the ball in both hands the entire time. For example, if the shooter catches and holds the ball for a while, jabs a few times, and then goes into their shooting motion, this frame would be multiple seconds before the shooting motion begins.
first_ball_in_hands_wall_clock
Type: string
UTC timestamp of the above frame
min_ball_height_he_frame
Type: integer
Frame where ball is at lowest height before upward motion into shot
min_ball_height_wall_clock
Type: string
UTC timestamp of the above frame
min_hips_height_he_frame
Type: integer
Frame where mid hips are at lowest height before upward motion. null if no minimum hip height before both feet are off the ground (e.g. catch and shoot in midair)
min_hips_height_wall_clock
Type: string
UTC timestamp of the above frame
Jump Timing
last_left_foot_on_floor_he_frame
Type: integer
Frame when left foot leaves the floor. null if player didn't jump
last_left_foot_on_floor_wall_clock
Type: string
UTC timestamp of the above frame. null if player didn't jump
last_right_foot_on_floor_he_frame
Type: integer
Frame when right foot leaves the floor. null if player didn't jump
last_right_foot_on_floor_wall_clock
Type: string
UTC timestamp of the above frame. null if player didn't jump
last_either_foot_on_floor_he_frame
Type: integer
Last frame where either foot is on floor (i.e. the frame right before they are completely in the air). null if player didn't jump
last_either_foot_on_floor_wall_clock
Type: string
UTC timestamp of the above frame. null if player didn't jump
jump_end_he_frame
Type: integer
First frame where at least one foot is back on ground after jump. null if player didn't jump
jump_end_wall_clock
Type: string
UTC timestamp of the above frame. null if player didn't jump
Release
set_point_he_frame
Type: integer
Our estimate for the "set point" of the shot. We define this as the point in which the ball is furthest back away from the rim before it starts going forward towards the rim.
set_point_wall_clock
Type: string
UTC timestamp of the above frame
last_ball_in_hands_he_frame
Type: integer
Our estimate for the "release point" of the shot. This is the first frame where we are confident the ball is not touching either hand.
last_ball_in_hands_wall_clock
Type: string
UTC timestamp of the above frame
first_right_wrist_below_eye_after_release_he_frame
Type: integer
First frame where right wrist drops below eye level after release
first_right_wrist_below_eye_after_release_wall_clock
Type: string
UTC timestamp of the above frame
first_left_wrist_below_eye_after_release_he_frame
Type: integer
First frame where left wrist drops below eye level after release
first_left_wrist_below_eye_after_release_wall_clock
Type: string
UTC timestamp of the above frame
Basket Entry
The goal of the basket entry checkpoint is to identify where the ball "lands" for a shot relative to the height of the rim, so that you can see whether players are shooting short/long or left/right.
basket_entry_he_frame
Type: integer
The frame where we estimate the ball enters the basket, i.e. when, after the peak of the shot arc, it gets to a height that if it were in a spot to go into the basket that the bottom of the ball would be below the height of the rim.
- If the ball is over the rim, this will be the frame in which the ball contacts the rim.
- If the ball goes through the basket but hits the back of the rim, this will still be the first frame in which the bottom of the ball is below rim height.
- If the ball airballs/is blocked, it will still be the first frame after the peak of the shot where the ball is below the height where it would have gone in the basket had it been in the right spot.
- If the ball hits the backboard first, it will still be the frame where the ball reaches the appropriate height.
basket_entry_wall_clock
Type: string
UTC timestamp of the basket_entry_he_frame.
basket_entry_depth
Type: float | Unit: inches
How many inches forward/back the center of the ball was from the center of the rim at the basket_entry_he_frame, from the perspective of the shooter. Positive numbers mean the ball was long, negative means short. We determine the "perspective of the shooter" by essentially drawing a line from the ball at release to the center of the rim.
basket_entry_left_right
Type: float | Unit: inches
How many inches left/right the center of the ball was from the center of the rim at the basket_entry_he_frame, from the perspective of the shooter. Positive numbers mean the ball was right, negative means left. We determine the "perspective of the shooter" by essentially drawing a line from the ball at release to the center of the rim.
basket_entry_location_relative_to_hoop_center_x
Type: float | Unit: inches
The x coordinate of the center of the ball at the basket_entry_he_frame if you imagine the center of the hoop as the origin, i.e. coordinate (0,0).
basket_entry_location_relative_to_hoop_center_y
Type: float | Unit: inches
The y coordinate of the center of the ball at the basket_entry_he_frame if you imagine the center of the hoop as the origin, i.e. coordinate (0,0).
basket_entry_distance_to_center_of_rim_2d
Type: float | Unit: inches
The distance, ignoring the height of the ball, from the center of the rim at the basket_entry_he_frame. In other words, imagine looking at the hoop from straight above and putting a dot where the center of the ball is at the basket_entry_he_frame. The distance from that dot to the center of the rim is the basket_entry_distance_to_center_of_rim_2d.
basket_entry_angle
Type: float | Unit: degrees
The angle formed between the ball at the basket_entry_he_frame, the ball 1/10th of a second prior, and the horizontal plane of the ball at the basket_entry_he_frame. The ball dropping straight down into the hoop from above would be a 90 degree angle, coming in completely flat in a straight line parallel to the floor would be a 0 degree angle.
basket_entry_speed_inches_per_sec
Type: float | Unit: in/sec
The speed of the ball over the 1/10th of a second prior to the basket_entry_he_frame, measured in inches per second. This is calculated by measuring the distance traveled by the ball in that time and multiplying by 10 to scale it to distance per second.
Shot Mechanics
General Metrics
hand_closest_to_ball_on_release
Type: string
Whether the left or right hand is closer to the center of the ball at the last_ball_in_hands_he_frame. This is almost always the shooting hand of the shooter, so it is a good way to filter these metrics based on the shooter’s handedness.
release_angle
Type: float | Unit: degrees
The angle the ball is released at from the shooter's hands, in degrees. 90 degrees would be straight up in the air, 0 degrees would be in a straight line parallel to the ground. This is calculated between the last_ball_in_hands_he_frame and 1/6th of a second later. null for blocked shots.
Ball Position
min_ball_height_relative_to_hips_in
Type: float | Unit: inches
How many inches above the shooter's mid hip joint the ball is at the min_ball_height_he_frame, i.e. when the ball is at its lowest point before the upward motion into the shot.
ball_release_height_in
Type: float | Unit: inches
Ball height above ground at release
release_height_above_nose_in
Type: float | Unit: inches
Ball height above shooter's nose at release
set_point_height_in
Type: float | Unit: inches
Ball height above ground at set point
set_point_height_above_nose_in
Type: float | Unit: inches
Ball height above shooter's nose at set point
ball_height_relative_to_neck_at_min_hips_in
Type: float | Unit: inches
How many inches the ball is above the neck at the min_hips_height_he_frame, when the hips are at their lowest point before the upward motion into the shot.
release_height_above_min_ball_height_in
Type: float | Unit: inches
How many inches the ball is released above the height of the ball at the min_ball_height_he_frame, i.e. when the ball is at its lowest point before the upward motion into the shot.
set_height_above_min_ball_height_in
Type: float | Unit: inches
How much higher the ball is at the set_point_he_frame vs. the min_ball_height_he_frame.
Ball Position (Side to Side)
set_point_ball_position_side_to_side_in
Type: float | Unit: inches
How many inches the ball is to the left or right of the nose at the set_point_he_frame. Positive values are to the left, negative values to the right.
min_ball_height_ball_position_side_to_side_in
Type: float | Unit: inches
How many inches the ball is to the left or right of the nose at the min_ball_height_he_frame. Positive values are to the left, negative values to the right.
release_point_ball_position_side_to_side_in
Type: float | Unit: inches
How many inches the ball is to the left or right of the nose at the last_ball_in_hands_he_frame. Positive values are to the left, negative values to the right.
Ball Position (Forward to Back)
set_point_ball_position_forward_to_back_in
Type: float | Unit: inches
Ball position in front of nose at set point
min_ball_height_ball_position_forward_to_back_in
Type: float | Unit: inches
Ball position in front of nose at min ball height
release_point_ball_position_forward_to_back_in
Type: float | Unit: inches
Ball position in front of nose at release
Shot Distance
ball_rim_distance_at_release_in
Type: float | Unit: inches
How many inches the center of the ball was from the center of the rim at the last_ball_in_hands_he_frame.
Ball Velocity
ball_velocity_min_ball_to_set_inches_per_sec
Type: float | Unit: in/sec
How many inches the ball traveled from the min_ball_height_he_frame to the set_point_he_frame divided by how many seconds elapsed in that time.
ball_velocity_set_to_release_inches_per_sec
Type: float | Unit: in/sec
How many inches the ball traveled from the set_point_he_frame to the last_ball_in_hands_he_frame divided by how many seconds elapsed in that time.
ball_velocity_after_release_inches_per_sec
Type: float | Unit: in/sec
How many inches the ball traveled from the last_ball_in_hands_he_frame to 1/6th of a second later divided by how many seconds elapsed in that time. null if the shot is blocked.
Shot Timing
release_relative_to_jump_sec
Type: float | Unit: seconds
Time from feet leaving floor to ball release. null if player didn't jump
set_relative_to_jump_sec
Type: float | Unit: seconds
Time from feet leaving floor to set point. null if player didn't jump
set_to_release_sec
Type: float | Unit: seconds
Duration from set point to release
ball_in_hands_sec
Type: float | Unit: seconds
Duration from first ball in hands to release
ball_in_hands_to_min_hips_sec
Type: float | Unit: seconds
Duration from first ball in hands to min hips
release_relative_to_jump_peak_timing
Type: float | Unit: seconds
Time from release to peak of jump. Negative = released on the way down. null if player didn't jump
shooting_wrist_above_eye_after_release_sec
Type: float | Unit: seconds
How many seconds the shooting hand remained above the shooter's eye level after the last_ball_in_hands_he_frame. This can help with measuring a player holding their follow through.
non_shooting_wrist_above_eye_after_release_sec
Type: float | Unit: seconds
How many seconds the non-shooting hand (aka guide hand) remained above the shooter's eye level after the last_ball_in_hands_he_frame.
Joint Angles
Shoulder Tilt
vertical_shoulder_tilt_at_min_hips
Type: float | Unit: degrees
A measurement of how tilted to the right or left the shoulders are at the min_hips_height_he_frame. 0 degrees means parallel to the ground, 90 degrees would mean the shoulders are stacked vertically, one on top of the other (i.e. the player is sideways in the air). Negative values mean the right shoulder is higher than the left, positive values mean the left shoulder is higher than the right.
Hip Facing (relative to rim)
0° = facing rim, 90° = facing left of rim, -90° = facing right of rim.
hip_facing_angle_relative_to_rim_at_first_ball_in_hands
Type: float | Unit: degrees
Hip angle at first ball in hands
hip_facing_angle_relative_to_rim_at_min_hips
Type: float | Unit: degrees
Hip angle at min hips
hip_facing_angle_relative_to_rim_at_jump_start
Type: float | Unit: degrees
Hip angle at jump start. null if player didn't jump
hip_facing_angle_relative_to_rim_at_release
Type: float | Unit: degrees
Hip angle at release
hip_facing_angle_relative_to_rim_at_jump_landing
Type: float | Unit: degrees
Hip angle at jump landing. null if player didn't jump
Hip Turn
hip_turn_from_first_ball_in_hands_to_jump_landing
Type: float | Unit: degrees
The difference in the hip facing angle from the first_ball_in_hands_he_frame to the jump_end_he_frame. A positive number means the player rotated to the left, a negative number means they rotated to the right. null if player didn't jump
NOTE
This will usually be meaningful only for shots where the player went into a shooting motion right after putting both hands on the ball. For those shots, this will show you the full extent of the hip turn from the beginning of the shooting motion through the landing. Otherwise, there may be a significant amount of time between having both hands on the ball and going into the shooting motion and this measurement is unlikely to tell you much in that case.
hip_turn_from_min_hips_to_jump_landing
Type: float | Unit: degrees
The difference in the hip facing angle from the min_hips_height_he_frame to the jump_end_he_frame. A positive number means the player rotated to the left, a negative number means they rotated to the right. null if player didn't jump
hip_turn_from_jump_start_to_jump_landing
Type: float | Unit: degrees
The difference in the hip facing angle from the last_either_foot_on_floor_he_frame to the jump_end_he_frame. A positive number means the player rotated to the left, a negative number means they rotated to the right. null if player didn't jump
hip_turn_from_min_hips_to_release
Type: float | Unit: degrees
The difference in the hip facing angle from the min_hips_height_he_frame to the last_ball_in_hands_he_frame. A positive number means the player rotated to the left, a negative number means they rotated to the right.
Shoulder Facing (relative to rim)
Same convention as hip facing.
shoulder_facing_angle_relative_to_rim_at_first_ball_in_hands
Type: float | Unit: degrees
Shoulder angle at first ball in hands
shoulder_facing_angle_relative_to_rim_at_min_hips
Type: float | Unit: degrees
Shoulder angle at min hips
shoulder_facing_angle_relative_to_rim_at_jump_start
Type: float | Unit: degrees
Shoulder angle at jump start. null if player didn't jump
shoulder_facing_angle_relative_to_rim_at_release
Type: float | Unit: degrees
Shoulder angle at release
shoulder_facing_angle_relative_to_rim_at_jump_landing
Type: float | Unit: degrees
Shoulder angle at jump landing. null if player didn't jump
Shoulder Turn
shoulder_turn_from_first_ball_in_hands_to_jump_landing
Type: float | Unit: degrees
The difference in the shoulder facing angle from the first_ball_in_hands_he_frame to the jump_end_he_frame. A positive number means the player rotated to the left, a negative number means they rotated to the right. null if player didn't jump
NOTE
This will usually be meaningful only for shots where the player went into a shooting motion right after putting both hands on the ball. For those shots, this will show you the full extent of the shoulder turn from the beginning of the shooting motion through the landing. Otherwise, there may be a significant amount of time between having both hands on the ball and going into the shooting motion and this measurement is unlikely to tell you much in that case.
shoulder_turn_from_min_hips_to_jump_landing
Type: float | Unit: degrees
The difference in the shoulder facing angle from the min_hips_height_he_frame to the jump_end_he_frame. A positive number means the player rotated to the left, a negative number means they rotated to the right. null if player didn't jump
shoulder_turn_from_jump_start_to_jump_landing
Type: float | Unit: degrees
The difference in the shoulder facing angle from the last_either_foot_on_floor_he_frame to the jump_end_he_frame. A positive number means the player rotated to the left, a negative number means they rotated to the right. null if player didn't jump
shoulder_turn_from_min_hips_to_release
Type: float | Unit: degrees
The difference in the shoulder facing angle from the min_hips_height_he_frame to the last_ball_in_hands_he_frame. A positive number means the player rotated to the left, a negative number means they rotated to the right.
Knee Bend
Angle formed by hip, knee, and ankle.
left_knee_bend_angle_at_min_hips
Type: float | Unit: degrees
Left knee angle at min hips
left_knee_bend_angle_at_min_ball
Type: float | Unit: degrees
Left knee angle at min ball height
right_knee_bend_angle_at_min_hips
Type: float | Unit: degrees
Right knee angle at min hips
right_knee_bend_angle_at_min_ball
Type: float | Unit: degrees
Right knee angle at min ball height
Hip Bend
Angle formed by shoulder, hip, and knee.
left_hip_bend_angle_at_min_hips
Type: float | Unit: degrees
Left hip angle at min hips
left_hip_bend_angle_at_min_ball
Type: float | Unit: degrees
Left hip angle at min ball height
right_hip_bend_angle_at_min_hips
Type: float | Unit: degrees
Right hip angle at min hips
right_hip_bend_angle_at_min_ball
Type: float | Unit: degrees
Right hip angle at min ball height
Foot Position at Jump Start
Ankle Distance
NOTE
All fields in this section are null when no jump was detected for the shot (e.g., set shots, or tracking gaps during the shot attempt).
ankle_distance_2d_at_jump_start_inches
Type: float | Unit: inches
The two dimensional distance between the left ankle joint at the last_left_foot_on_floor_he_frame and the right ankle joint at the last_right_foot_on_floor_he_frame. Imagine looking at the player from overhead and seeing how far apart the feet are as each leaves the ground. null if no jump detected.
left_ankle_distance_side_to_side_at_jump_start_inches
Type: float | Unit: inches
How many inches to the left side of the middle of the hips is the shooter's left ankle as the left foot leaves the ground. To measure this, imagine a graph based on the way the hips are facing, with the center (at 0, 0) being the middle of the hips, the vertical axis being forward-back and the horizontal axis being side-to-side. This field shows the distance on the side-to-side dimension between the ankle point and the middle of the hips. null if no shot jump detected.
right_ankle_distance_side_to_side_at_jump_start_inches
Type: float | Unit: inches
How many inches to the right side of the middle of the hips is the shooter's right ankle as the right foot leaves the ground. To measure this, imagine a graph based on the way the hips are facing, with the center (at 0, 0) being the middle of the hips, the vertical axis being forward-back and the horizontal axis being side-to-side. This field shows the distance on the side-to-side dimension between the ankle point and the middle of the hips. null if no shot jump detected.
left_ankle_vs_hip_side_to_side_at_jump_start_inches
Type: float | Unit: inches
How many inches to the outside of the left hip is the left ankle. 0 would mean directly in line with the hip on that side of the body, negative numbers show the foot is inside the hip. null if no shot jump detected.
right_ankle_vs_hip_side_to_side_at_jump_start_inches
Type: float | Unit: inches
How many inches to the outside of the right hip is the right ankle. 0 would mean directly in line with the hip on that side of the body, negative numbers show the foot is inside the hip. null if no shot jump detected.
right_ankle_distance_forward_back_at_jump_start_inches
Type: float | Unit: inches
How many inches forward or back of the hips is the shooter's right ankle as the right foot leaves the ground. To measure this, imagine a graph based on the way the hips are facing, with the center (at 0, 0) being the middle of the hips, the vertical axis being forward-back and the horizontal axis being side-to-side. This field shows the distance on the vertical axis between the ankle point and the middle of the hips. null if no shot jump detected.
left_ankle_distance_forward_back_at_jump_start_inches
Type: float | Unit: inches
How many inches forward or back of the hips is the shooter's left ankle as the left foot leaves the ground. To measure this, imagine a graph based on the way the hips are facing, with the center (at 0, 0) being the middle of the hips, the vertical axis being forward-back and the horizontal axis being side-to-side. This field shows the distance on the vertical axis between the ankle point and the middle of the hips. null if no shot jump detected.
Foot Angle
right_foot_angle_to_hoop_at_jump_start
Type: float | Unit: degrees
The angle formed by the center of the rim, the heel of the right foot, and the midpoint of the big and little toes. If the foot is pointing straight at the rim, this would be 0 degrees; to the left side of the hoop, this angle will be negative; to the right will be positive. null if no shot jump detected.
left_foot_angle_to_hoop_at_jump_start
Type: float | Unit: degrees
The angle formed by the center of the rim, the heel of the left foot, and the midpoint of the big and little toes. If the foot is pointing straight at the rim, this would be 0 degrees; to the left side of the hoop, this angle will be negative; to the right will be positive. null if no shot jump detected.
Heel and Toe Distance
heel_distance_at_jump_start_inches
Type: float | Unit: inches
How far apart are the shooter's heels, measured as each foot leaves the floor. This is measured in two dimensions, i.e. it ignores a difference in height. null if no shot jump detected.
mid_toe_distance_at_jump_start_inches
Type: float | Unit: inches
How far apart is the midpoint of the shooter's toes on each foot, measured as each foot leaves the floor. This is measured in two dimensions, i.e. it ignores a difference in height. null if no shot jump detected.
mid_toe_heel_dist_difference_at_jump_start_inches
Type: float | Unit: inches
Toe distance minus heel distance. Positive = feet turned out, negative = turned in. null if no shot jump detected.
Paul George's toes are turned in on this shot. The value of this field for this shot is -6.6.
Shooting Arm Position
At Set Point
shooting_wrist_elbow_shoulder_angle_at_set_point
Type: float | Unit: degrees
Angle formed by wrist, elbow, shoulder (from the side).
shooting_elbow_shoulder_hip_angle_at_set_point
Type: float | Unit: degrees
Angle formed by elbow, shoulder, hip.
shooting_elbow_shoulder_hoop_angle_at_set_point
Type: float | Unit: degrees
Measures where the elbow is pointing relative to the hoop. This tells you the angle formed by the shooting elbow, shooting shoulder, and hoop at the set point, where 0 degrees would be aiming straight at the rim, negative is to the left of the rim and positive to the right.
shooting_elbow_flare_angle_at_set_point
Type: float | Unit: degrees
How flared out or in is the shooting elbow relative to the shoulders at the set point. 0 degrees would mean the elbow is directly in line with the way the shoulders are pointing, a positive number means it's flared out away from the center of the body (regardless of whether it's the left or right arm), a negative number would mean it's pointed in toward the center of the body.
Elbow/Wrist Relative to Ball
elbow_relative_to_ball_at_set_forward_back_inches
Type: float | Unit: inches
Viewed from above, how far in front of or behind the center of the ball is the elbow at the set point. The forward-back axis here is the line from the center of the ball to the center of the rim.
elbow_relative_to_ball_at_set_side_to_side_inches
Type: float | Unit: inches
Viewed from above, how far to the left or right of the center of the ball is the elbow at the set point. The side-to-side axis here is the line perpendicular to the line from the center of the ball to the center of the rim. Negative is to the left of the ball, positive is to the right.
elbow_relative_to_ball_at_release_forward_back_inches
Type: float | Unit: inches
Viewed from above, how far in front of or behind the center of the ball is the elbow at the release point. The forward-back axis here is the line from the center of the ball to the center of the rim.
elbow_relative_to_ball_at_release_side_to_side_inches
Type: float | Unit: inches
Viewed from above, how far to the left or right of the center of the ball is the elbow at the release point. The side-to-side axis here is the line perpendicular to the line from the center of the ball to the center of the rim. Negative is to the left of the ball, positive is to the right.
wrist_relative_to_ball_at_set_forward_back_inches
Type: float | Unit: inches
Viewed from above, how far in front of or behind the center of the ball is the wrist at the set point. The forward-back axis here is the line from the center of the ball to the center of the rim.
wrist_relative_to_ball_at_set_side_to_side_inches
Type: float | Unit: inches
Viewed from above, how far to the left or right of the center of the ball is the wrist at the set point. The side-to-side axis here is the line perpendicular to the line from the center of the ball to the center of the rim. Negative is to the left of the ball, positive is to the right.
wrist_relative_to_ball_at_release_forward_back_inches
Type: float | Unit: inches
Viewed from above, how far in front of or behind the center of the ball is the wrist at the release point. The forward-back axis here is the line from the center of the ball to the center of the rim.
wrist_relative_to_ball_at_release_side_to_side_inches
Type: float | Unit: inches
Viewed from above, how far to the left or right of the center of the ball is the wrist at the release point. The side-to-side axis here is the line perpendicular to the line from the center of the ball to the center of the rim. Negative is to the left of the ball, positive is to the right.
Balance
is_off_balance
Type: boolean
true if we estimate that the shooter would be judged as off balance when they release the ball, false otherwise. We measure this by looking at whether the player is fading any direction in the air at release, whether they jump a far distance in a direction away from the rim, and what their balance and feet are like when they land.
NOTE
This is a more subjective marking than many of the others we've produced data on, but we think it's valuable. We also include all of the inputs we've used for this as separate fields below if you would like to develop your own estimate of balance or simply use each individual field as its own input in a larger model.
neck_relative_to_feet_midpoint_at_release_xy_distance_in
Type: float | Unit: inches
Imagine looking at a player from straight overhead as they release their shot. This field measures the two-dimensional distance (ignoring the height distance) between the player's neck and the point in between their left and right ankles. A player standing straight up and down would have their neck right over their ankles (and a distance close to 0), while a player leaning back would have their neck much further from their ankles.
neck_relative_to_knee_midpoint_at_release_xy_distance_in
Type: float | Unit: inches
Imagine looking at a player from straight overhead as they release their shot. This field measures the left-to-right distance (i.e. ignoring the height distance) between the player's neck and the point in between their knees. A player standing straight up and down would have their neck right over their knees (and a distance close to 0), while a player leaning back would have their neck much further from their knees.
neck_relative_to_mid_hip_at_release_xy_distance_in
Type: float | Unit: inches
Imagine looking at a player from straight overhead as they release their shot. This field measures the two-dimensional distance (ignoring the height distance) between the player's neck and the point in between their left and right hips. A player standing straight up and down would have their neck right over their hips (and a distance close to 0), while a player leaning back would have their neck much further from their hips.
jump_distance_not_toward_rim_in
Type: float | Unit: inches
How many inches the player's jump for the shot took them in a direction that was not toward the rim. null if player didn't jump
landing_ankle_height_difference_in
Type: float | Unit: inches
When the player landed from their jump for their shot, how many inches different was the height of their ankles from each other. A player who is off balance when shooting is much more likely to land on one foot and kick the other foot out for balance. null if player didn't jump
Shot Jump
These fields relate to the player's jump into the shot attempt.
NOTE
All fields in this section are null when no jump was detected for the shot (e.g., set shots, or tracking gaps during the shot attempt).
shot_jump_max_hip_height_vs_standing_hip_height_diff_in
Type: float | Unit: inches
The maximum number of inches the player got their hips off the ground during the jump above where we estimate they would have been if they were standing on the ground straight up. A value of 12, for example, means the player's mid hip is 12 inches higher in the air than our estimate of their standing mid hip height during this jump. null if no jump was detected for the shot.
shot_jump_distance_mid_hips_in
Type: float | Unit: inches
The two-dimensional distance covered by the player's jump, based on where their mid hip is at the start and end of the jump. Imagine putting a dot on the floor where the mid hip is when they start their jump and where it is when they land, and then measuring the distance with a tape measure. null if no jump was detected for the shot.
shot_jump_direction_mid_hips
Type: float | Unit: degrees
The angle formed by the rim, the mid hip location at the start of the jump, and the mid hip location at the end of the jump. 0 degrees would be directly toward the rim, 180 would be directly away. Any negative numbers mean the player went to the left on their jump relative to the rim, positive means to the right. null if no jump was detected for the shot.
shot_jump_distance_ankles_in
Type: float | Unit: inches
The two-dimensional distance covered by the player's jump, based on where the midpoint of their ankles is at the start and end of the jump. Imagine drawing a line between the two ankles and putting a dot on the floor at the middle of that line when they start their jump and where it is when they land, and then measuring the distance with a tape measure. null if no jump was detected for the shot.
shot_jump_direction_ankles
Type: float | Unit: degrees
The angle formed by the rim, the midpoint of the ankles at the start of the jump, and the midpoint of the ankles at the end of the jump. 0 degrees would be directly toward the rim, 180 would be directly away. Any negative numbers mean the player went to the left on their jump relative to the rim, positive means to the right. null if no jump was detected for the shot.
jump_shot_footwork_type
Type: string
Classifies the type of footwork the player used to get into their shot jump.
Options:
hop- the player lifts both feet off the ground and lands with them both very close to the same time before jumping for their shot
left_right- the player steps into the shot, first with their left foot, then with their right
right_left- the player steps into the shot, first with their right foot, then with their left
plant_foot_left- the player has their left foot planted on the ground for a reasonable period of time and moves their right foot before jumping to shoot
plant_foot_right- the player has their right foot planted on the ground for a reasonable period of time and moves their left foot before jumping to shoot
both_planted- both feet are planted on the ground for a reasonable period of time before jumpingother- we couldn't confidently classify the footwork into one of the categories above (this is rare)
